DC Coreless Brush Metal Motor 6V12V24V36V48V Coreless DC Brush
Motor. Electrical Brush Motor .L42mm D22mm
Product introduction:
Assun DC Brush motor . there is a magnet in the fixed part of the
brushless DC motor, which is called the main magnetic pole here;
The fixed part also has brushes. The rotating part has an annular
iron core and a winding wound on the annular iron core.
Assun Metal Brush Series Coreless motors are manufactured with
coreless rotors and metal brush commutators.The high efficiency and
precision character of metal brushed coreless motor made it perfect
for energy critical and fast responding applications such as
medical tools and robotic actuators

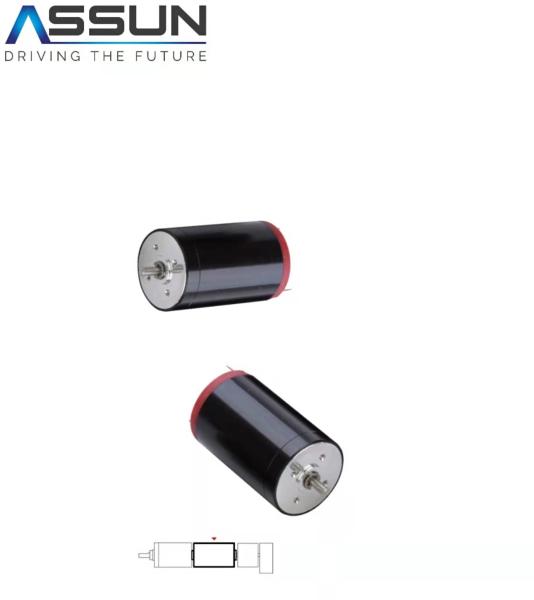

AM-CL2242MAN-1207
1.Coreless Metal Brush DC motor diameter 22mm. length 42mm. 12V.
2.Nominal voltage : 12V. No load speed ±12%: 7150 rpm.
3.No load current Max150% : 24 mA. Max cont.torque: 12.4mN.m. Rated
Speed : 6352 rpm.
4.Rated Current: 800 mA. Rated Power: 8.2 W. Starting current
:6977mA. Stall Torque : 111 mN.m.
5. Maximum power output : 20.8W. Maximum Efficiency : 89 %. Terminal
resistance ±12% : 1.72Ω.
6.Weight : 79.8g.
7.DC Coreless Metal Brushed motor can install the corresponding
with Encoder and Planetarty gearbox.
Product Details:
| Motor Model | AM-CL2242MAN-1207 | Unit |
| Nominal voltage | 12 | V |
| No load speed ±12% | 7150 | rpm |
| No load current Max150% | 24 | mA |
| Max cont.torque | 12.4 | mN.m |
| Rated Speed | 6352 | rpm |
| Rated Current | 800 | mA |
| Rated Power | 8.2 | W |
| Starting current | 6977 | mA |
| Stall Torque | 111 | mN.m |
| Maximum power output | 20.8 | W |
| Maximum Efficiency | 89 | % |
| Terminal resistance ±12% | 1.72 | Ω |
| Inductance (1KHz) | 0.23 | mH |
| Mechanical time constant | 6.0 | ms |
| Moment of inertia | 8.92 | gcm² |
| Torque constant | 16.0 | mN.m / A |
| Speed constant | 598 | rpm / V |
| Speed / torque gradient | 64.4 | rpm / mN.m |
| Weight | 79.8 | g |
Recommended Gearbox:
Planetary Gearbox : AM-20GP. AM-24GP.
Recommended Encoder :
Encoder S : AM-EN2211S***
2~3 Channels.
Appliation:
Assun Motor application of positive element brushless precision
servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
More information. please vist our website : www.assunmotor.com
