Metal Brushed Coreless Motor 12v 1600mA Starting Current 10247 Rpm
Speed
Product Description:
Assun DC Brushed Motors are manufactured with coreless rotors for
high efficiency, smooth operation and low inertia.These coreless
brushed motors are perfect for applications with hogh efficiency
and precision control needs.
Power rating from less than 1 watt to 150 watts. diameter from 16mm
to 40mm, Assun DC brushed motors can be used for various DC drive
systems. Graphite and metal brushes are to be chosen for different
operation conditions.
Assun Metal Brush Series Coreless motors are manufactured with
coreless rotors and metal brush commutators.The high efficiency and
precision character of metal brushed coreless motor made it perfect
for energy critical and fast responding applications such as
medical tools and robotic actuators.
Product introduction:

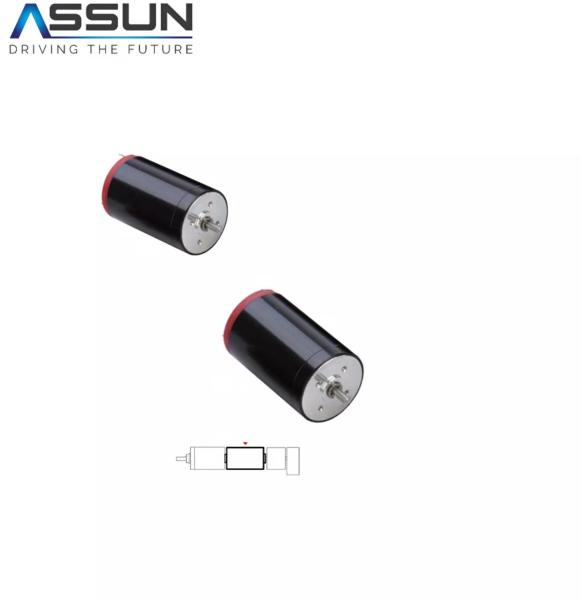

AM-CL1626MAN-1212
1.Coreless Metal Brush DC motor diameter 16mm. length 26mm. 12V.
2.Nominal voltage : 12V. No load speed ±12%: 12075 rpm.
3.No load current Max150% :9.2 mA. Max cont.torque: 2.3 mN.m. Rated
Speed : 10247 rpm.
4.Rated Current: 250 mA. Rated Power: 2.4 W. Starting current :
1600mA. Stall Torque : 15 mN.m.
5. Maximum power output : 4.7W. Maximum Efficiency : 85 %. Terminal
resistance ±12% : 7.5Ω.
6.Weight : 22.2g. Motor thermal resistance : 37.6 K/W.
7.DC Coreless Metal Brushed motor can install the corresponding
with Encoder and Planetarty gearbox.
Product Details:
| Motor Model | AM-CL1626MAN-1212 | Unit |
| Nominal voltage | 12 | V |
| No load speed ±12% | 12075 | rpm |
| No load current Max150% | 9.2 | mA |
| Max cont.torque | 2..3 | mN.m |
| Rated Speed | 10247 | rpm |
| Rated Current | 250 | mA |
| Rated Power | 2.4 | W |
| Starting current | 1600 | mA |
| Stall Torque | 15 | mN.m |
| Maximum power output | 4.7 | W |
| Maximum Efficiency | 85 | % |
| Terminal resistance ±12% | 7.5 | Ω |
| Inductance (1KHz) | 0.29 | mH |
| Mechanical time constant | 10.1 | ms |
| Moment of inertia | 1.2 | gcm² |
| Torque constant | 9.4 | mN.m / A |
| Speed constant | 1012 | rpm / V |
| Speed / torque gradient | 804 | rpm / mN.m |
| Weight | 22.2 | g |
Recommended Gearbox:
Planetary Gearbox : AM-16GP. AM-20GP.
Recommended Encoder :
Encoder S : AM-EN1611S***
2~3 Channels
Appliation:
Assun Motor application of positive element brushless precision
servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
Service idea :
We can search for qualified products according to the required
specifications (size, torque, revolutions, etc.) of gearbox, DC
motor and reducer proposed by customers. The products searched are
just one example of a rich product lineup, and there are many
products that have not been published. At the same time, we also
undertake special product design and OEM development. For relevant
matters, please contact the business department of our company.
