36V 24V 12V Coreless Brushless Motor 25000rpm 20mm Diameter

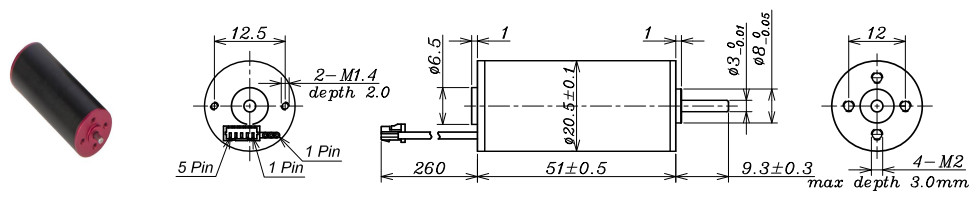

36V,24V,12V Brushless DC Motor,15000-25000rpm,20mm diameter,51mm
Length
Product introduction:
1. It's DC Brushless Motor. 15000-25000rpm,20mm diameter.51mm
Length,36V,24V,12V
2. No load speed ±12%: 24781rpm. No load current Max150%: 90mA
.Maximum power output 102.9W. Terminal resistance ±12%: 3.1Ω.
3. Torque constant 13.8mN.m/A. Speed constant 694rpm/V,
4. Brushless motors can install the corresponding with planetarty
gearbox and encoder
5. Weight :86.8g. Ambient temperatue range : -30 to 65 ℃.
Product Details:
| Motor Model | AM-BL-2051AN-3619 | Unit |
| Nominal voltage | 36 | V |
| No load speed ±12% | 24781 | rpm |
| No load current Max150% | 90 | mA |
| Max cont.torque | 5.6 | mN.m |
| Rated Speed | 23899 | rpm |
| Rated Current | 500 | mA |
| Rated Power | 14.1 | W |
| Starting current | 11613 | mA |
| Stall Torque | 159 | mN.m |
| Maximum power output | 102.9 | W |
| Maximum Efficiency | 83 | % |
| Terminal resistance ±12% | 3.1 | Ω |
| Inductance ( 1KHz ) | 0.29 | mH |
| Mechanical time constant | 2.3 | ms |
| Moment of inertia | 1.43 | gcm² |
| Torque constant | 13.8 | mN.m / A |
| Speed constant | 694 | rpm / V |
| Speed / torque gradient | 156.2 | rpm / mN.m |
| Weight | 86.8 | g |
Service idea :
We can search for qualified products according to the required
specifications (size, torque, revolutions, etc.) of gearbox, DC
motor and reducer proposed by customers. The products searched are
just one example of a rich product lineup, and there are many
products that have not been published. At the same time, we also
undertake special product design and OEM development. For relevant
matters, please contact the business department of our company.
