Product Description:

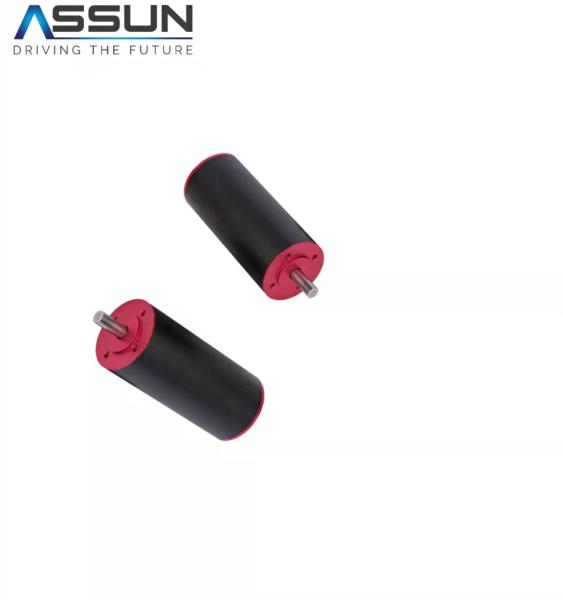

Brushless DC high temp motor,70mm length.32diameter,36V24V12V,6000-12000rpm

Product introduction:

1. High temperature DC Brushless Motor. 32mm diameter,36V /24V / 12V, 6000-13000rpm,70mm Length

2. No load speed ±12%: 10882rpm. No load current Max150%: 94mA .Maximum power output 208.7W. Terminal resistance ±12%: 1.54Ω.

3. Torque constant 31.5mN.m/A. Speed constant 303rpm/V, Speed / torque gradient 14.9rpm/ V

4. Weight :280.g. Maximum winding temperature: 125℃,Ambient temperatue range : -30 to 65 ℃.

5. High temp DC Coreless motors can install the corresponding with planetarty gearbox and encoder

Product Details:

Recommended Gearbox:

Planetary Gearbox : AM-32GP. AM-36GP.

Recommended Encoder :

Encoder S : AM-EN2211S***

2~3 Channels

Encoder T : AM-EN2412T***

2~3 Channels

Appliation:

Assun Motor application of positive element brushless precision servo motor in intelligent equipment

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.
