Product Description:

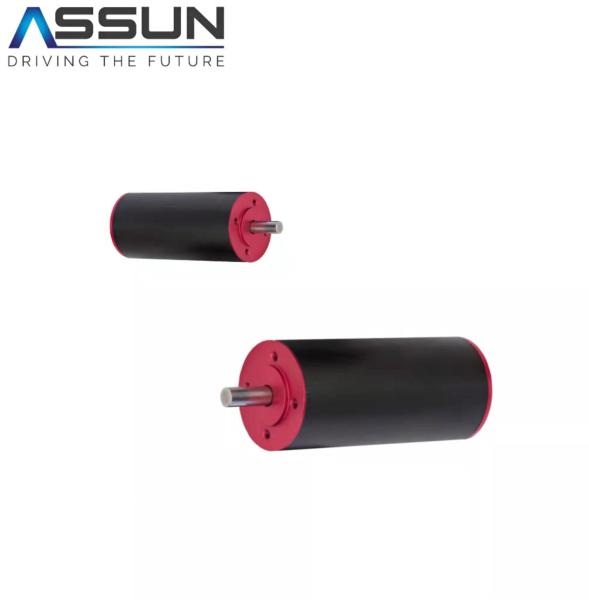

DC Brushless high temperature Motor.12V24V36V,8000-12000rpm,Diameter32mm 70mm Length

Product introduction:

1. High temperature DC Brushless Motor. 32mm diameter,36V /24V / 12V, 9000-13000rpm,70mm Length

2. No load speed ±12%: 8904rpm. No load current Max150%: 127mA .Maximum power output 138.3W. Terminal resistance ±12%: 1.03Ω.

3. Torque constant 25.6mN.m/A. Speed constant 373rpm/V, Speed / torque gradient 15rpm/ V

4. Weight :280.g. Maximum winding temperature: 125℃,Ambient temperatue range : -30 to 65 ℃.

5. High temp DC Coreless motors can install the corresponding with planetarty gearbox and encoder

Product Details:

Recommended Gearbox :

Planetary Gearbox : AM-32GP AM-36GP

Recommended Encoder :

Encoder S : AM-EN2211S*** 2-3 Channels

Encoder T : AM-EN2412T*** 2-3 Channels

Application:

Application of Assun Encoder in intelligent equipment. Robotic brake. Z-axis brake. Servo motor static braking. General purpose

motor.etc.

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

Assun Motor designs, manufactures and distributes high performance DC driving systems to offer solutions for precise driving and exacting motion control applications.

Over the 20 years of experience, we are harness sophisticated machinery and state-of-the-art equipment to forge a strong manufacturing base in Shenzhen, China, giving us the ability to customize products that are based on the needs of our customers.

We have global presence with sales offices in China, Singapore and America, and  supported by agents in Europe and Australia, allowing us to provide top notch service to worldwide clients.
