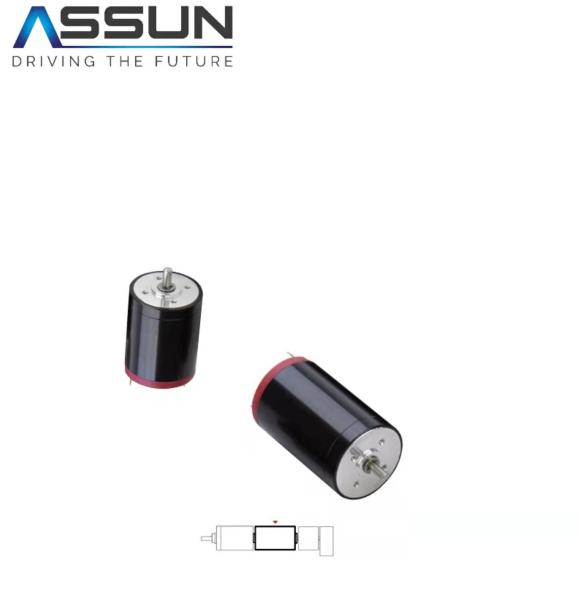

DC Coreless Graphite Brush Motor D35mm L70mm 48V24V12V Carbon
Brushed DC Motor
Maximum winding temperature : 155 ℃.
Model:
AM-CL3570GAF-4802
Product Description:
Assun Graphite Brush motor is used on the commutator or slip ring
of the motor. As a sliding contact for deriving and introducing
current, it has
good conductivity, heat conduction and lubrication performance, and
has certain mechanical strength and commutation. It is widely used
in all
kinds of intelligent robots, medical equipment, electronic Mounter
equipment, etc
Product Details:
| Motor Model | AM-CL3570GAF-4802 | Unit |
| Nominal voltage | 48 | V |
| No load speed ±12% | 1830 | rpm |
| No load current Max150% | 12 | mA |
| Max cont.torque | 126.1 | mN.m |
| Rated Speed | 1103 | rpm |
| Rated Current | 520 | mA |
| Rated Power | 14.6 | W |
| Starting current | 1290 | mA |
| Stall Torque | 317 | mN.m |
| Maximum power output | 15.2 | W |
| Maximum Efficiency | 82 | % |
| Terminal resistance ±12% | 37.2 | Ω |
| Inductance (1KHz) | 9.6 | mH |
| Mechanical time constant | 6.7 | ms |
| Moment of inertia | 110.8 | gcm² |
| Torque constant | 248.1 | mN.m / A |
| Speed constant | 38 | rpm / V |
| Speed / torque gradient | 5.8 | rpm / mN.m |
| Weight | 351.6 | g |
Recommended Gearbox:
Planetary Gearbox : AM-36GP. AM-40GP. AM-45GP.
Recommended Encoder :
Encoder S : AM-EN2211S***
2~3 Channels.
Encoder T : AM-EN2412T***
2~3 Channels.
Assun DC Graphite Brush Motor can install the corresponding with Encoder and Planetarty gearbox.
Assun Motor application of positive element brushless/ brushed
precision servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
Service idea :
We can search for qualified products according to the required
specifications (size, torque, revolutions, etc.) of gearbox, DC
motor and reducer proposed by customers. The products searched are
just one example of a rich product lineup, and there are many
products that have not been published. At the same time, we also
undertake special product design and OEM development. For relevant
matters, please contact the business department of our company.
More information. please vist our website : www.assunmotor.com
