DC Brush Motor.6V12V24V DC Graphite Brush Coreless Motor.Carbon
Brush DC Motor
Product Description:
Assun Graphite Brush Series Coreless Motors are manufactured with
Coreless rotors and Graphite Brush commutators.Benefited from the
graphite brushes,.
These motors are more robust and can operate in higher current
which lesd to higher torque and power output. It's ideal for
applications that need high power output and operate in harsh
environments.

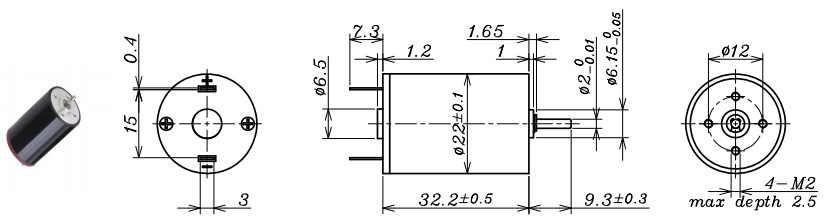

Product Details:
| Motor Model | AM-CL2232GAN-1209 | Unit |
| Nominal voltage | 12 | V |
| No load speed ±12% | 5735 | rpm |
| No load current Max150% | 25 | mA |
| Max cont.torque | 8.4 | mN.m |
| Rated Speed | 4229 | rpm |
| Rated Current | 450 | mA |
| Rated Power | 3.7 | W |
| Starting current | 1644 | mA |
| Stall Torque | 32 | mN.m |
| Maximum power output | 4.8 | W |
| Maximum Efficiency | 77 | % |
| Terminal resistance ±12% | 7.3 | Ω |
| Inductance (1KHz) | 0.44 | mH |
| Mechanical time constant | 9.7 | ms |
| Moment of inertia | 5.15 | gcm² |
| Torque constant | 19.7 | mN.m / A |
| Speed constant | 485 | rpm / V |
| Speed / torque gradient | 180.0 | rpm / mN.m |
| Weight | 57.0 | g |
Recommended Gearbox:
Planetary Gearbox : AM-20GP. AM-24GP.
Recommended Encoder :
Encoder S : AM-EN2211S***
2~3 Channels.
Assun DC Graphite Brush Motor can install the corresponding with Encoder and Planetarty gearbox.
Assun Motor application of positive element brushless/ brushed
precision servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
Service idea :
We can search for qualified products according to the required
specifications (size, torque, revolutions, etc.) of gearbox, DC
motor and reducer proposed by customers. The products searched are
just one example of a rich product lineup, and there are many
products that have not been published. At the same time, we also
undertake special product design and OEM development. For relevant
matters, please contact the business department of our company.
