High precisions Planetary Gearbox Diameter 52mm Length47.8 64.3
80.8 97.3mm
Product Description :
Assun Planetary Gearbox of precision series are manufactured with
the latest production technology to achieve very low backlash.
higher
efficiency , longer lifetime and higher output torque. Diameter
from 16mm to 60mm. the precision series planetary gearboxes offer a
wide range of high precision choices for DC drive solution.
The design of Assun motor drive system aims to improve the
accuracy, reliability and efficiency of the system. The hollow cup
motor drive system has low power consumption, compact size, no
cogging torque, low electromagnetic noise and high reliability. It
is very suitable for industries with high requirements for product
quality.
Product introduction:
1.High precisions Planetary Gearbox. diameter 52mm.Length: 47.8mm
64.3mm 80.8mm 97.3mm
2.Gear type: Straight teeth . Radial Play(12mm from flange) max
0.1mm
3.Output shaft : stainless steel hardened. Permissible force press
fits : max.500 N
4. Main gear: Alloy Steel hardened. Permissible axial load :
max.200N
5. Ring gear : Stainless steel hardened. Recommended inut speed:
8000RPM.
6.Adapter plate: Stainless steel. Operating temperature range
-40℃~100℃
7.Bearing AT output :Ball bearing . Operating humidity range:
10-90%RH.
8.Axial play: 0~0.3. Number of stage : 1 . 2 . 3 . 4 . Directions :
CW/CCW.
9.Weight :510 / 720 / 930 / 1140 g.Regular Planetary Gearbox can
install with Encoder.Brush Motor and Coreless Motor.
10. Permissible load (12 mm from flange) 420N 630N 900N 900N.
Product Detail:
| Number of stage | 1 | 2 | 3 | 4 |
| Reduction ratio X :1 | 3.5 | 4.3 | 12
15
21 | 19 26
|
43 45 66 74 126
| 81
91 113 156
| 150 186 230 257 285
| 319 394 441 756
| 353 488 546 546
676 936 |
| Motor shaft max.diameter(mm) | 10 | 8 | 10 | 8 | 10 | 8 | 10 | 8 |
| Gearbox length l(mm) | 47.8 | 64.3 | 80.8 | 97.3 |
| Max.continuous torque(N.m) | 4 | 15 | 30 | 30 |
| Max.intermitten torque(N.m) | 6 | 22.5 | 45 | 45 |
| Average backlash no load | 0.6° | 0.7° | 0.7° | 0.7° |
| Gearbox efficiency | 90% | 81% | 73% | 65% |
| Max.mass inertia(gcm²) | 19.99 | 20.98 | 21.06 | 21.07 |
| Gearbox weight approx(g) | 510 | 720 | 930 | 1140 |
| Gearbox model | AM-52GPA-X-01 | AM-52GPB-X-01 | AM-52GPC-X-01 | AM-52GPD-X-01 |
Recommended Motor :
Brushless Motor(w/E): AM-BL4060BF. AM-BL45100AN. AM-BL45100BF
AM-BD45100AN.
Recommended Encoder :
Suitable for Brushless Motor : Encoder S : AM-EN2211S***. Encoder T
: AM-EN3612T***.

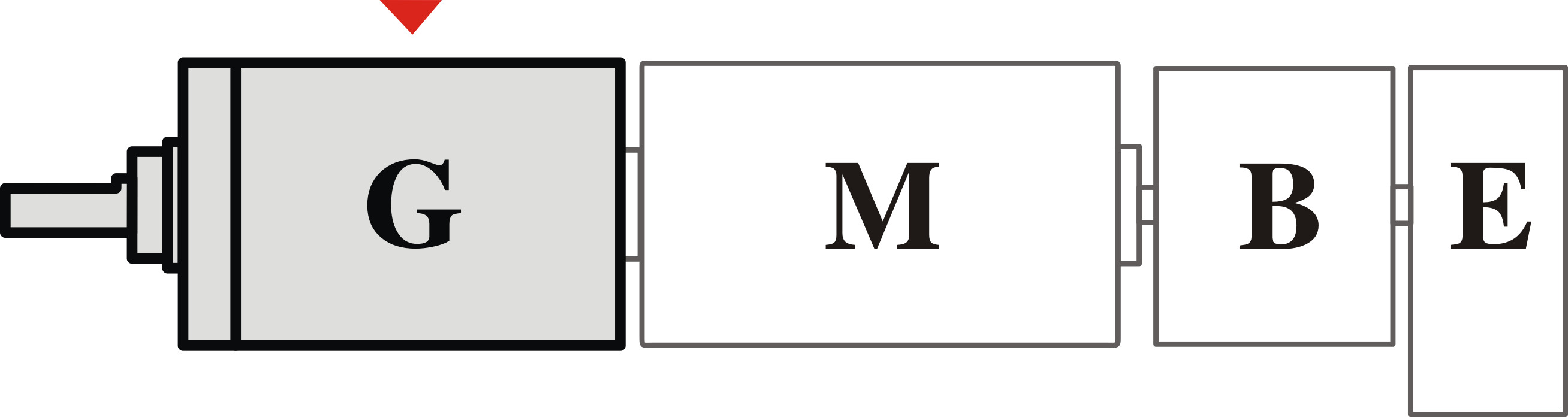

Assun Planetarty gearbox can install the corresponding with Encoder
and DC Graphite Brush / Brushless Motor
Assun precision plantary gearbox application of positive element in
intelligent equipment:
Service idea :
We can search for qualified products according to the required
specifications (size, torque, revolutions, etc.) of gearbox, DC
motor and reducer proposed by customers. The products searched are
just one example of a rich product lineup, and there are many
products that have not been published. At the same time, we also
undertake special product design and OEM development. For relevant
matters, please contact the business department of our company.
