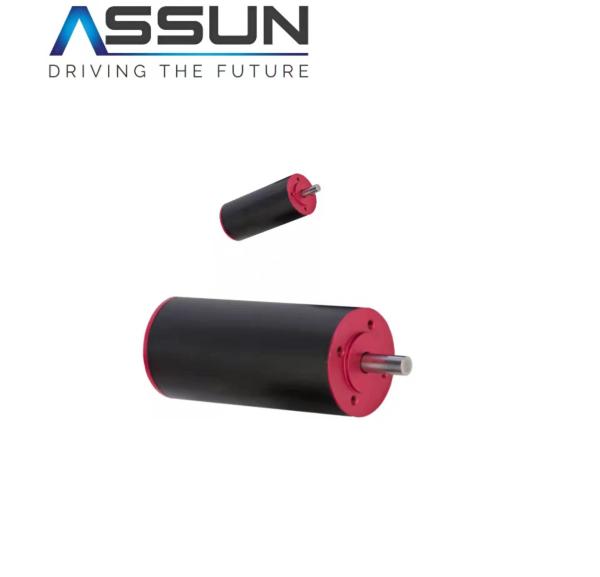

12V,24V,18V DC Coreless Motor,15000-26000rpm,20mm diameter,40mm
Length
Product introduction:
1.It's DC Brushless Motor. 20mm diameter.40mm Length .12V,24V,18V
2.No load speed ±12%: 20360rpm. No load current Max150%: 190mA
.Maximum power output 45.0W. Terminal resistance ±12%: 0.78Ω.
3.Torque constant 5.6mN.m/A. Speed constant 1718rpm/V
4.Brushless motors can install the corresponding with planetarty
gearbox and encoder
5.Weight :66.2g
Product Details:
| Motor Model | AM-BL-2040AN-1226 | Unit |
| Nominal voltage | 12 | V |
| No load speed ±12% | 20360 | rpm |
| No load current Max150% | 190 | mA |
| Max cont.torque | 7.3 | mN.m |
| Rated Speed | 18605 | rpm |
| Rated Current | 1500 | mA |
| Rated Power | 14.2 | W |
| Starting current | 15385 | mA |
| Stall Torque | 84 | mN.m |
| Maximum power output | 45.0 | W |
| Maximum Efficiency | 79 | % |
| Terminal resistance ±12% | 0.78 | Ω |
| Inductance ( 1KHz ) | 0.061 | mH |
| Mechanical time constant | 2.9 | ms |
| Moment of inertia | 1.13 | gcm² |
| Torque constant | 5.6 | mN.m / A |
| Speed constant | 1718 | rpm / V |
| Speed / torque gradient | 241.1 | rpm / mN.m |
| Weight | 66.2 | g |
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
Service idea :
We can search for qualified products according to the required
specifications (size, torque, revolutions, etc.) of gearbox, DC
motor and reducer proposed by customers. The products searched are
just one example of a rich product lineup, and there are many
products that have not been published. At the same time, we also
undertake special product design and OEM development. For relevant
matters, please contact the business department of our company.
More information. please vist our website : www.assunmotor.com
