Product Description:

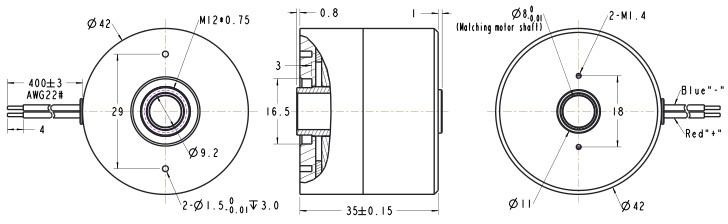

Motor Brake,Mechanical Brake,Power off Brake.Electromagnetic.Motor Brake.Diameter 42mm. Thickness 35mm

Product introduction:

1.Power-off Brake can install the corresponding with encoder and brushless / brushed moter.

2.Static friction tourque 1.0N.M Ratd voltage :24V Power :7.5W

3.Temperature Rating : 120℃ Max speed : 8000 rpm Moment of inertia : 77.56g.cm²

4. Weight :211.2g life time : 100000times. Thermal Resistance : 12.6K/W

5. Thermal time Constant: 908s Coil Inductance : 60.9mH. Electrical Time Constant 1.1ms.

6.Operating Environment Tenperature: -25~55℃.

7.Motor Brake,Mechanical Brake,Power off Brake.Electromagnetic.Motor Brake. Diameter 42mm. Thickness 35mm.

Product Detail:

Special Features:

1.Fixed accuracy. no backlash.

2.Small size and high torque.

3.Low noise.high speed.

4.Fast response and long life.

Recommended Motor :

Brushless Motor : AM-BL/D45*** AM-BL65***

Recommended Encoder :

Encoder S : AM-EN2211S*** 2~3 Channels.

Encoder T : AM-EN3612T*** 2~3 Channels.

Application:

Application of Assun Brake in intelligent equipment. Robotic brake. Z-axis brake. Servo motor static braking. General purpose

motor.etc.
