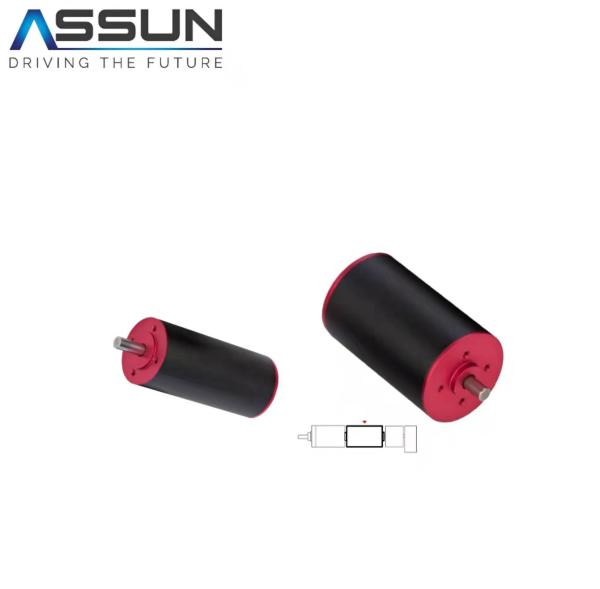

DC High power coreless motor,24V12V18V length45mm
diameter28mm,7900-15000rpm
Product introduction:
1. Brushless High power DC Motor. 7900-15000rpm,18V24V12V.length
45mm.diameter 28mm. .
2. No load speed ±12%: 8171rpm. No load current Max150%:167mA
.Maximum power output 104.3W. Terminal resistance ±12%: 1.38Ω.
3.Torque constant 28.05mN.m/A. Speed constant 340rpm/V, Speed /
torque gradient 20.1rpm/ V.
4. High temperature DC Coreless motors can install the
corresponding with planetarty gearbox and encoder
5. Weight :180.5g. Motor thermal resistance : 10.5K/W.Maximum
winding temperature: 155℃,Ambient temperatue range : -30 to 66℃.
Product Details:
| Motor Model | AM-BL2845BF-2408 | Unit |
| Nominal voltage | 24 | V |
| No load speed ±12% | 8171 | rpm |
| No load current Max150% | 167 | mA |
| Max cont.torque | 65.44 | mN.m |
| Rated Speed | 6996 | rpm |
| Rated Current | 2500 | mA |
| Rated Power | 47.94 | W |
| Starting current | 17391 | mA |
| Stall Torque | 488 | mN.m |
| Maximum power output | 104.3 | W |
| Maximum Efficiency | 81.2 | % |
| Terminal resistance ±12% | 1.38 | Ω |
| Motor thermal resistance | 10.5 | K/W |
| Mechanical time constant | 2.03 | ms |
| Moment of inertia | 11.3 | gcm² |
| Torque constant | 28.05 | mN.m / A |
| Speed constant | 340 | rpm / V |
| Speed / torque gradient | 20.1 | rpm / mN.m |
| Weight | 180.5 | g |
Recommended Gearbox:
Planetary Gearbox : AM-28GP. AM-32GP.
Recommended Encoder :
Encoder S : AM-EN1611S***
2~3 Channels
Encoder T : AM-EN1612T***
2~3 Channels
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
