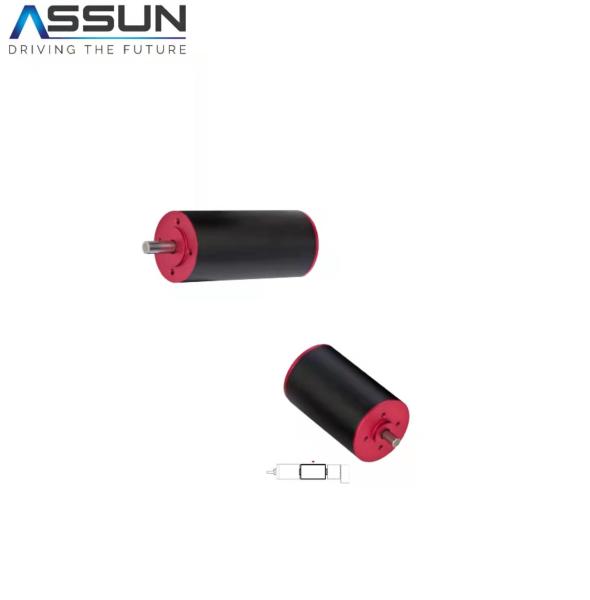

High power Brushless DC motor 5500-11000rpm.length100mm.diameter
45mm 24V36V48V
Product introduction:
1.High power DC Brushless Motor,5500-11000rpm.24V48V36V..Length
100mm.diameter 45mm.
2.No load current Max150%: 571mA .Maximum power output:1390.1W.
Terminal resistance ±12%: 0.11Ω.
3.Speed / torque gradient 0.9rpm/ V.No load speed ±12%: 6737rpm.
4. High temperature DC Coreless motors can install the
corresponding with Encoder and Planetarty gearbox.
5. Maximum winding temperature: 155℃,Ambient temperatue range : -30
to 66℃.
6.Weight :757.6g.Motor thermal resistance : 3.3K/W.Torque constant
34.02mN.m/A. Speed constant 281rpm/V.
Product Details:
| Motor Model | AM-BL45100BF-2405 | Unit |
| Nominal voltage | 24 | V |
| No load speed ±12% | 6737 | rpm |
| No load current Max150% | 571 | mA |
| Max cont.torque | 354.79 | mN.m |
| Rated Speed | 6397 | rpm |
| Rated Current | 11000 | mA |
| Rated Power | 237.68 | W |
| Starting current | 218182 | mA |
| Stall Torque | 7423 | mN.m |
| Maximum power output | 1390.1 | W |
| Maximum Efficiency | 90.1 | % |
| Terminal resistance ±12% | 0.11 | Ω |
| Motor thermal resistance | 3.3 | K/W |
| Mechanical time constant | 2.16 | ms |
| Moment of inertia | 227.19 | gcm² |
| Torque constant | 34.02 | mN.m / A |
| Speed constant | 281 | rpm / V |
| Speed / torque gradient | 0.9 | rpm / mN.m |
| Weight | 757.6 | g |
Recommended Gearbox:
Planetary gearbox: AM-45GP. AM-52GP.
Recommended Encoder :
Encoder S: AM-EN2211S**
2~3 Channels
Encoder T: AM-EN3612T**
2~3 Channels
Appliation:
Assun Motor application of positive element brushless precision
servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
