Product Description:

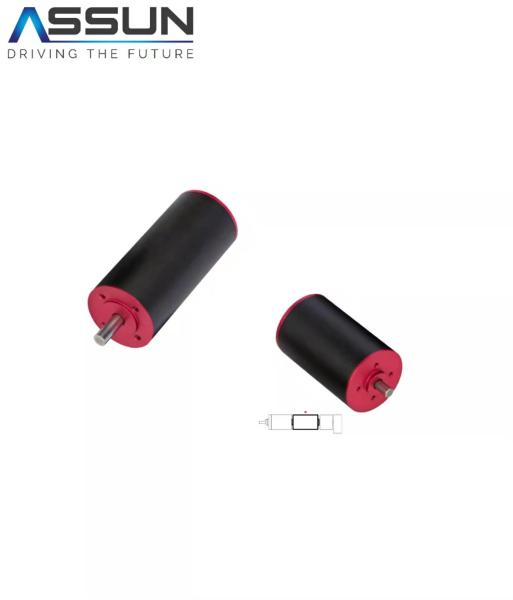

High power Brushless DC motor 36V24V12V 10000-8000rpm
length70mm,diameter32mm
Product introduction:
1.High power DC Coreless Motor,36V24V12V.length 70mm.diameter
32mm.7000-10000rpm.
2. No load speed ±12%: 8792rpm. No load current Max150%:250.1mA
.Maximum power output 405W. Terminal resistance ±12%: 0.8Ω.
3.Torque constant 39.1mN.m/A. Speed constant 244rpm/V, Speed /
torque gradient 5.2rpm/ V.
4. High temperature DC Coreless motors can install the
corresponding with encoder and planetarty gearbox.
5. Weight :280.5g. Motor thermal resistance : 7.4K/W.
6.Maximum winding temperature: 155℃,Ambient temperatue range : -30
to 66℃.
Product Details:
| Motor Model | AM-BL3270BF-3609 | Unit |
| Nominal voltage | 36 | V |
| No load speed ±12% | 8792 | rpm |
| No load current Max150% | 250.1 | mA |
| Max cont.torque | 123.2 | mN.m |
| Rated Speed | 8128 | rpm |
| Rated Current | 3400 | mA |
| Rated Power | 104.83 | W |
| Starting current | 45000 | mA |
| Stall Torque | 1760 | mN.m |
| Maximum power output | 405 | W |
| Maximum Efficiency | 86.5 | % |
| Terminal resistance ±12% | 0.8 | Ω |
| Motor thermal resistance | 7.4 | K/W |
| Mechanical time constant | 0.99 | ms |
| Moment of inertia | 18.95 | gcm² |
| Torque constant | 39.1 | mN.m / A |
| Speed constant | 244 | rpm / V |
| Speed / torque gradient | 5.2 | rpm / mN.m |
| Weight | 280.5 | g |
Application :
Assun Motor application of positive element brushless precision
servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
Service idea :
We can search for qualified products according to the required
specifications (size, torque, revolutions, etc.) of gearbox, DC
motor and reducer proposed by customers. The products searched are
just one example of a rich product lineup, and there are many
products that have not been published. At the same time, we also
undertake special product design and OEM development. For relevant
matters, please contact the business department of our company.
More information. please vist our website : www.assunmotor.com
