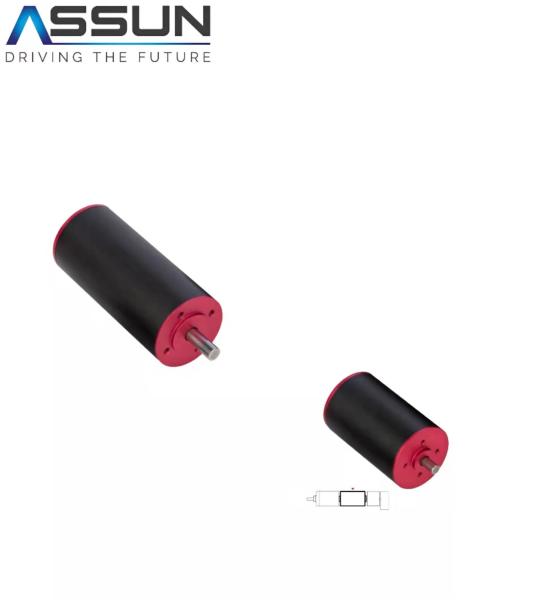

DC high power Coreless motor 36V24V48V.5500-11000rpm36mm diameter.90mm length

Product introduction:

1.36V48V24V.High power DC Brushless Motor.5500-11000rpm.diameter 36mm. length 90mm.

2.No load current Max150%: 178mA .Maximum power output 327.3W.No load speed ±12%: 5093rpm.

3.Torque constant 67.5mN.m/A. Speed constant 141rpm/V, Speed / torque gradient 2.12rpm/ V.

4. High temperature DC Coreless motors can install the corresponding with encoder and planetarty gearbox.

5. Maximum winding temperature: 155℃,Ambient temperatue range : -32to 66℃.

6.Weight :480.4g. Terminal resistance ±12%: 0.99Ω.

Product Details:

Application:

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

More information. please vist our website : www.assunmotor.com

Assun Motor designs, manufactures and distributes high performance DC driving systems to offer solutions for precise driving and exacting motion control applications.

Over the 20 years of experience, we are harness sophisticated machinery and state-of-the-art equipment to forge a strong manufacturing base in Shenzhen, China, giving us the ability to customize products that are based on the needs of our customers.

We have global presence with sales offices in China, Singapore and America, and  supported by agents in Europe and Australia, allowing us to provide top notch service to worldwide clients.

www.assunmotor.com
