Product Description:

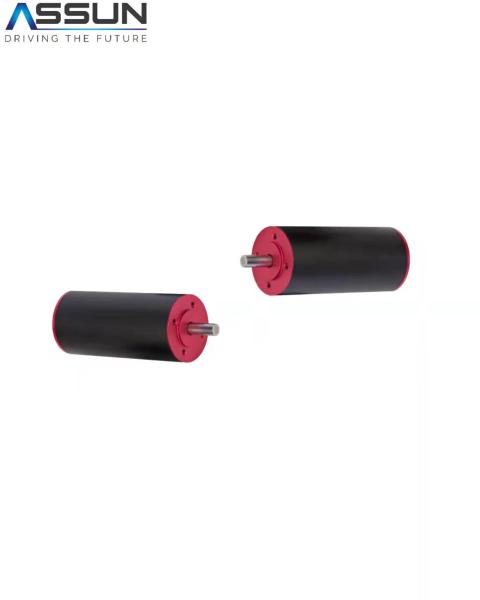

Brushless high power DC motor 48V36V24V 60mm length..6800-1100rpm
40mm diameter
Product introduction:
1.Length 60mm.diameter 40mm.High power DC Coreless
Motor,6800-1100rpm.48V36V24V.
2. No load speed ±12%: 7076rpm. No load current Max150%: 146mA
.Maximum power output 484.0W. Terminal resistance ±12%: 1.82Ω.
3.Torque constant 64.8mN.m/A. Speed constant 147rpm/V, Speed /
torque gradient 2.72rpm/ V.
4. High temperature DC Coreless motors can install the
corresponding with encoder and planetarty gearbox.
5. Maximum winding temperature: 155℃,Ambient temperatue range : -30
to 66℃.
6.Weight :356.6g.Motor thermal resistance : 5.65K/W.
Product Details:
| Motor Model | AM-BL4060BF-4807 | Unit |
| Nominal voltage | 48 | V |
| No load speed ±12% | 7076 | rpm |
| No load current Max150% | 146 | mA |
| Max cont.torque | 191.42 | mN.m |
| Rated Speed | 6530 | rpm |
| Rated Current | 3100 | mA |
| Rated Power | 130.89 | W |
| Starting current | 40336 | mA |
| Stall Torque | 2614 | mN.m |
| Maximum power output | 484 | W |
| Maximum Efficiency | 88.3 | % |
| Terminal resistance ±12% | 1.82 | Ω |
| Motor thermal resistance | 5.65 | K/W |
| Mechanical time constant | 2.45 | ms |
| Moment of inertia | 86.56 | gcm² |
| Torque constant | 64.8 | mN.m / A |
| Speed constant | 147 | rpm / V |
| Speed / torque gradient | 2.72 | rpm / mN.m |
| Weight | 356.6 | g |
Appliation:
Assun Motor application of positive element brushless precision
servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
Service idea :
We can search for qualified products according to the required
specifications (size, torque, revolutions, etc.) of gearbox, DC
motor and reducer proposed by customers. The products searched are
just one example of a rich product lineup, and there are many
products that have not been published. At the same time, we also
undertake special product design and OEM development. For relevant
matters, please contact the business department of our company.
