Product Description:

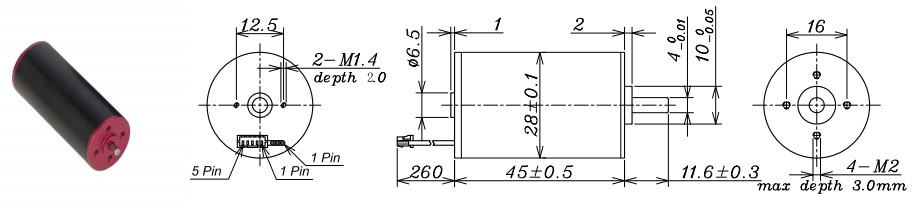

High temperature DC Brushless Motor,9000-15000rpm,12V 24V 18V,28diameter,45mm Length

Product introduction:

1. High temperature DC Brushless Motor. 18V / 24V / 12V, 9000-15000rpm,45mm Length,28mm diameter

2. No load speed ±12%: 12520rpm. No load current Max150%: 170mA .Maximum power output 96.1W. Terminal resistance ±12%: 0.83Ω.

3. Torque constant 13.6mN.m/A. Speed constant 701rpm/V, Speed / torque gradient 42.7rpm/ V

4. High temp DC Coreless motors can install the corresponding with planetarty gearbox and encoder

5. Weight :139.1g. Maximum winding temperature: 125℃,Ambient temperatue range : -30 to 65 ℃.

Product Details:

Assun Motor designs, manufactures and distributes high performance DC driving systems to offer solutions for precise driving and exacting motion control applications.

Over the 20 years of experience, we are harness sophisticated machinery and state-of-the-art equipment to forge a strong manufacturing base in Shenzhen, China, giving us the ability to customize products that are based on the needs of our customers.

We have global presence with sales offices in China, Singapore and America, and  supported by agents in Europe and Australia, allowing us to provide top notch service to worldwide clients.
