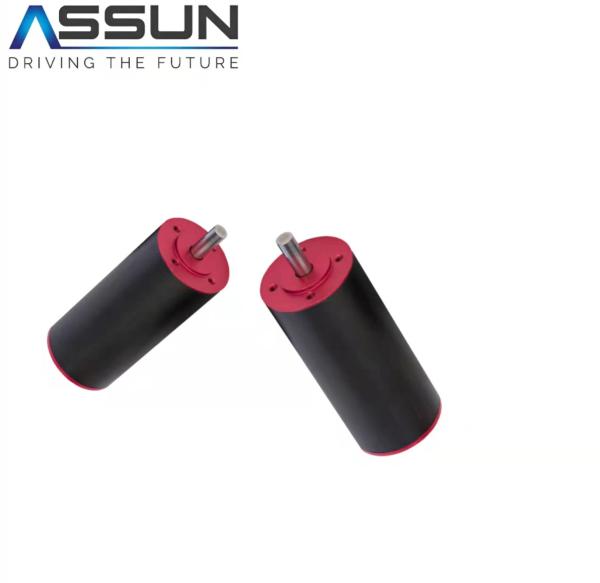

High Temp 12v Coreless Dc Motor 6000mA Rated Current 11037 Rpm

Product Description:

High temp DC Coreless Motor,13000-9000rpm,60mm Length,32diameter,12V 36V 24V

Product introduction:

1. High temperature DC Brushless Motor. 32mm diameter,12V /24V / 36V, 9000-13000rpm,60mm Length

2. No load speed ±12%: 12191rpm. No load current Max150%: 355mA .Maximum power output 177.9W. Terminal resistance ±12%: 0.2Ω.

3. Torque constant 9.3mN.m/A. Speed constant 1022rpm/V, Speed / torque gradient 21.9rpm/ V

4. High temp DC Coreless motors can install the corresponding with planetarty gearbox and encoder

5. Weight :240.0g. Maximum winding temperature: 125℃,Ambient temperatue range : -30 to 65 ℃.

Product Details:

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

Assun Motor designs, manufactures and distributes high performance DC driving systems to offer solutions for precise driving and exacting motion control applications.

Over the 20 years of experience, we are harness sophisticated machinery and state-of-the-art equipment to forge a strong manufacturing base in Shenzhen, China, giving us the ability to customize products that are based on the needs of our customers.

We have global presence with sales offices in China, Singapore and America, and  supported by agents in Europe and Australia, allowing us to provide top notch service to worldwide clients.

www.assunmotor.com
