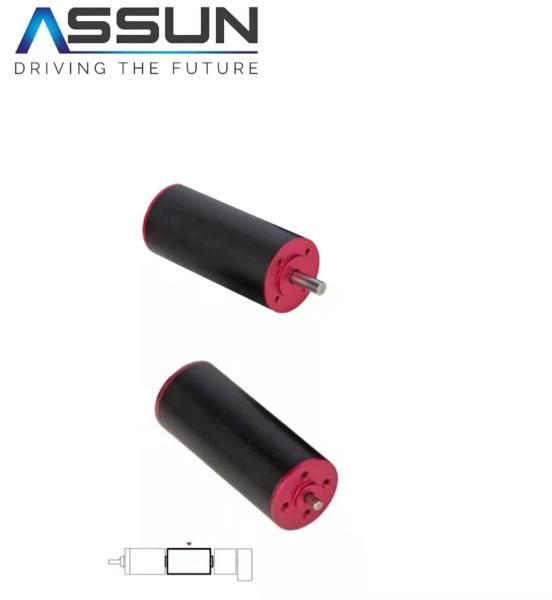

High temp Coreless DC Brushless Motor Length24mm Diameter16mm
4.5V6V9V12V
Model:
AM-BL1624AE-1215
Product Description:
Assun high temperature series BLDC motors have been upgraded from
the standard series in material and magnets to fit for higher power
demands could choose the high temperature series products for a
safer and more guaranteed overrall performance.
Maximum winding temperature : 125 ℃.
Product Details:
| Motor Model | AM-BL1624AE-1215 | Unit |
| Nominal voltage | 12 | V |
| No load speed ±12% | 14800 | rpm |
| No load current Max150% | 60 | mA |
| Max cont.torque | 2.6 | mN.m |
| Rated Speed | 9382 | rpm |
| Rated Current | 420 | mA |
| Rated Power | 2.6 | W |
| Starting current | 1043 | mA |
| Stall Torque | 7 | mN.m |
| Maximum power output | 2.8 | W |
| Maximum Efficiency | 58 | % |
| Terminal resistance ±12% | 11.5 | Ω |
| Maximum winding temperature | 125 | ℃ |
| Mechanical time constant | 4.1 | ms |
| Moment of inertia | 0.19 | gcm² |
| Torque constant | 7.3 | mN.m / A |
| Speed constant | 1309 | rpm / V |
| Speed / torque gradient | 2062.2 | rpm / mN.m |
| Weight | 31 | g |
Recommended Gearbox:
Planetary Gearbox : AM-16GP. AM-19GP.
Recommended Encoder :
Encoder S : AM-EN1611S*** 2~3 Channels.
Encoder T : AM-EN1612T*** 2~3 Channels.
Assun DC Brushless Motor can install the corresponding with Encoder and Planetarty gearbox.
Assun Motor application of positive element brushless/ brushed
precision servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
