DC Coreless driver Motor.DC Brushless driver Motor.Brushless speed
driver Motor
Product Description:

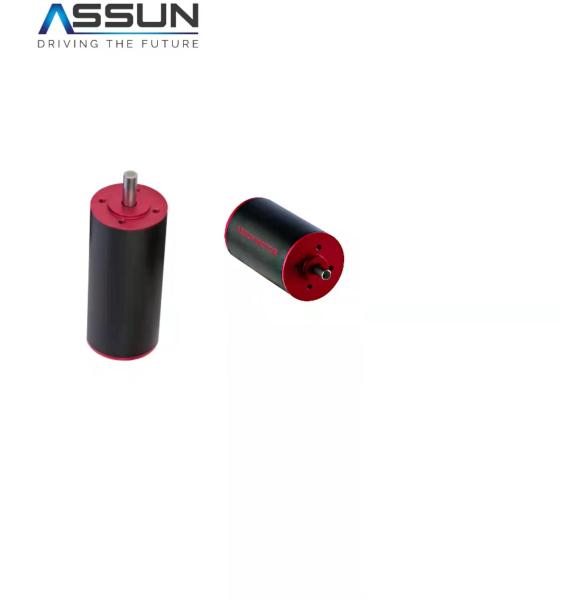

Assun driver integrated series BLDC motors are equipped with the
speed driver inside of the motor for easier installation and more
convenient use.Basic functions like speed control, rotation control
and signal feedback can be achieved by the integrated driver.
Product introduction:
AM-BD3260AN-1208. 12V.
1.Diameter 32mm. Length 60mm.DC Brushless Driver
Motor,8000-13000rpm.24V.12V.
2. No load speed ±12%: 8127rpm. No load current Max150%: 192mA .
3.Torque constant 14.0mN.m/A. Speed constant 682rpm/V, Speed /
torque gradient : 20.9rpm / mN.m
4.Weight :240.2g.Maximum power output 82.6W.
5. Maximum winding temperature: 85℃,Ambient temperatue range : -30
to 65℃.Motor thermal resistance : 7.8K/W.
6.DC Brushless driver motors can install the corresponding with
encoder and planetarty gearbox.
Product Details:
| Motor Model | AM-BD3260AN-1208 | Unit |
| Nominal voltage | 12 | V |
| No load speed ±12% | 8127 | rpm |
| No load current Max150% | 192 | mA |
| Max cont.torque | 36.5 | mN.m |
| Rated Speed | 7362 | rpm |
| Rated Current | 2800 | mA |
| Rated Power | 28.2 | W |
| Starting current | 27907 | mA |
| Stall Torque | 388 | mN.m |
| Maximum power output | 82.6 | W |
| Maximum Efficiency | 84.1 | % |
| Operating Range | 10~28 | V |
| Type of Current | Controlled |
| Mechanical time constant | 2.91 | ms |
| Moment of inertia | 13.32 | gcm² |
| Torque constant | 14.0 | mN.m / A |
| Speed constant | 682 | rpm / V |
| Speed / torque gradient | 20.9 | rpm / mN.m |
| Weight | 240.2 | g |
Recommended Gearbox:
Planetary gearbox: AM-32GP. AM-36GP.
Recommended Encoder :
Encoder S: AM-EN2211S**
2~3 Channels
Encoder T: AM-EN2412T**
2~3 Channels
Appliation:
Assun Motor application of positive element brushless precision
servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
Service idea :
We can search for qualified products according to the required
specifications (size, torque, revolutions, etc.) of gearbox, DC
motor and reducer proposed by customers. The products searched are
just one example of a rich product lineup, and there are many
products that have not been published. At the same time, we also
undertake special product design and OEM development. For relevant
matters, please contact the business department of our company.
