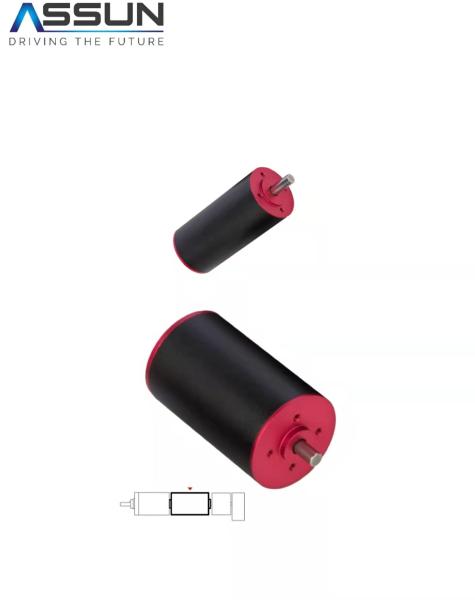

High power DC coreless motor,9000-12000rpm 24mm diameter 53mm length,12V18V24V

Product introduction:

1. High power DC Coreless Motor. 9000-12000rpm,12V / 18V / 24V.24mm diameter 53mm length.

2. No load speed ±12%: 11937rpm. No load current Max150%: 358mA .Maximum power output 163.6W. Terminal resistance ±12%: 0.22Ω.

3. Inductance (1KHz): 2.38mH. Torque constant 9.6mN.m/A. Speed constant 995rpm/V, Speed / torque gradient 22.8rpm/ V.

4. Weight :180g. Maximum winding temperature: 155℃,Ambient temperatue range : -30 to 65℃.

5. High temperature DC Coreless motors can install the corresponding with planetarty gearbox and encoder

Product Details:

Recommended Gearbox:

Planetary Gearbox : AM-24GP. AM-28GP.

Recommended Encoder :

Encoder S : AM-EN1611S***

2~3 Channels

Encoder T : AM-EN1612T***

2~3 Channels

Appliation:

Assun Motor application of positive element brushless precision servo motor in intelligent equipment

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
