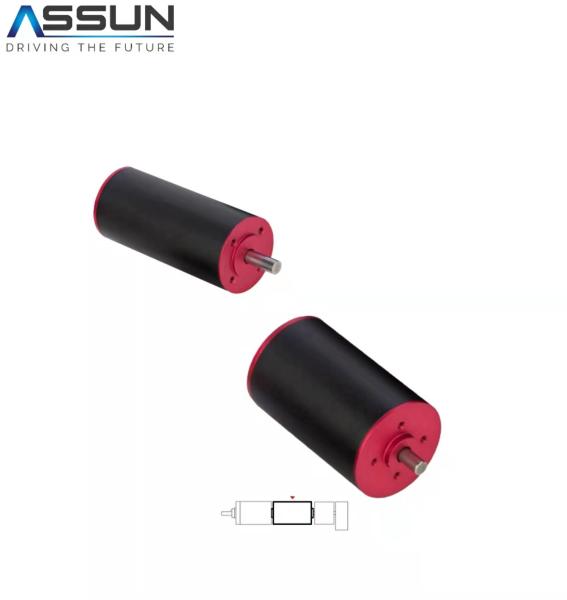

Brushless DC high power motor,9000-12000rpm 24mm diameter 53mm
length,18V24V12V
Product introduction:
1. High power DC Coreless Motor. 9000-12000rpm,18V / 12V / 24V.53mm
length.24mm diameter .
2. No load speed ±12%: 11937rpm. No load current Max150%: 239mA
.Maximum power output 174.1W. Terminal resistance ±12%: 0.44Ω.
3. Inductance (1KHz): 2.12mH. Torque constant 14.4mN.m/A. Speed
constant 663rpm/V, Speed / torque gradient 20.3rpm/ V.
4. Weight :180.2g. Motor thermal resistance : 10.5K/W.Maximum
winding temperature: 155℃,Ambient temperatue range : -30 to 65℃.
5. High temperature DC Coreless motors can install the
corresponding with planetarty gearbox and encoder
Product Details:
| Motor Model | AM-BL2453BF-1812 | Unit |
| Nominal voltage | 18 | V |
| No load speed ±12% | 11937 | rpm |
| No load current Max150% | 239 | mA |
| Max cont.torque | 54.16 | mN.m |
| Rated Speed | 10769 | rpm |
| Rated Current | 4000 | mA |
| Rated Power | 61.08 | W |
| Starting current | 40909 | mA |
| Stall Torque | 589 | mN.m |
| Maximum power output | 174.1 | W |
| Maximum Efficiency | 85 | % |
| Terminal resistance ±12% | 0.44 | Ω |
| Inductance (1KHz) | 2.12 | K/W |
| Mechanical time constant | 2.12 | ms |
| Moment of inertia | 9.99 | gcm² |
| Torque constant | 14.4 | mN.m / A |
| Speed constant | 663 | rpm / V |
| Speed / torque gradient | 20.3 | rpm / mN.m |
| Weight | 180.2 | g |
Recommended Gearbox:
Planetary Gearbox : AM-28GP. AM-24GP.
Recommended Encoder :
Encoder S : AM-EN1611S***
2~3 Channels
Encoder T : AM-EN1612T***
2~3 Channels
Appliation:
Assun Motor application of positive element brushless precision
servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
Service idea :
We can search for qualified products according to the required
specifications (size, torque, revolutions, etc.) of gearbox, DC
motor and reducer proposed by customers. The products searched are
just one example of a rich product lineup, and there are many
products that have not been published. At the same time, we also
undertake special product design and OEM development. For relevant
matters, please contact the business department of our company.
More information. please vist our website : www.assunmotor.com
