Product Description:
Assun DC Brushed Motors are manufactured with coreless rotors for
high efficiency, smooth operation and low inertia.These coreless
brushed motors are perfect for applications with hogh efficiency
and precision control needs.
Power rating from less than 1 watt to 150 watts. diameter from 16mm
to 40mm, Assun DC brushed motors can be used for various DC drive
systems. Graphite and metal brushes are to be chosen for different
operation conditions.
Assun Metal Brush Series Coreless motors are manufactured with
coreless rotors and metal brush commutators.The high efficiency and
precision character of metal brushed coreless motor made it perfect
for energy critical and fast responding applications such as
medical tools and robotic actuators.
Product introduction:

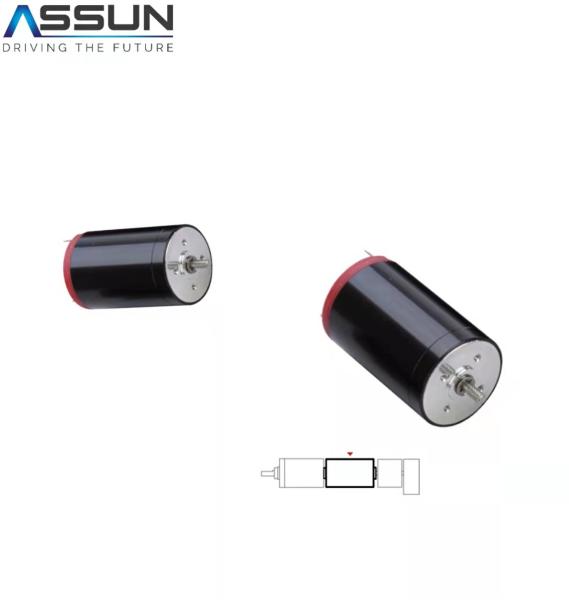

AM-CL1623MAN-0108 :
1.Coreless Metal Brush DC motor diameter16mm.length23mm. 1.5 V. 6 V
. 3 V. 12 V.
2.No load current Max150%: 55mA .Maximum power output:1.2W.
Terminal resistance ±12%: 0.44Ω.
3.Speed / torque gradient 1304rpm/ V. No load speed ±12%: 7850rpm.
4. Coreless Metal Brush DC motor can install the corresponding with
Encoder and Planetarty gearbox.
5. Maximum winding temperature: 85℃,Ambient temperatue range : -30
to 66℃.
6.Weight :18.6g.Motor thermal resistance : 41.71K/W.Torque constant
1.8mN.m/A. Speed constant 5319rpm/V.
Product Details:
| Motor Model | AM-CL1623MAN-0108 | Unit |
| Nominal voltage | 1.5 | V |
| No load speed ±12% | 7850 | rpm |
| No load current Max150% | 55 | mA |
| Max cont.torque | 1.3 | mN.m |
| Rated Speed | 6106 | rpm |
| Rated Current | 800 | mA |
| Rated Power | 0.9 | W |
| Starting current | 3409 | mA |
| Stall Torque | 6.0 | mN.m |
| Maximum power output | 1.2 | W |
| Maximum Efficiency | 76 | % |
| Terminal resistance ±12% | 0.44 | Ω |
| Inductance (1KHz) | 0.006 | mH |
| Mechanical time constant | 18.7 | ms |
| Moment of inertia | 1.38 | gcm² |
| Torque constant | 1.8 | mN.m / A |
| Speed constant | 5319 | rpm / V |
| Speed / torque gradient | 1304 | rpm / mN.m |
| Weight | 18.62 | g |
Recommended Gearbox:
Planetary Gearbox : AM-16GP. AM-20GP.
Recommended Encoder :
Encoder S : AM-EN1611S***
2~3 Channels
Appliation:
Assun Motor application of positive element brushless precision
servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
