Encoder,Electromagnetic Encoder,Incremental Encoder. (CL),Weight
9.0g
Incremental Encoder, Electromagnetic Encoder, Encoder
AM-EN2211S103(CL)Series :
1. AM-EN2211S103-0032 . 2. AM-EN2211S103-0064. 3. AM-EN2211S103-0128
4. AM--EN2211S103-0256 . 5.AM-EN2211S103-0512. 6.AM-EN2211S103-1024
Product introduction:
Incremental Encoder, Electromagnetic Encoder, Encoder
AM-EN2211S103(CL)- **** Series products diameter 22mm.
PPR / TURN : 32 / 64 / 128 / 256 / 512 / 1024. Max Channels : 3
Max Working Freq.(KHz) : 20 / 40 / 100 / 180 / 360 / 512
Weight : 9.0g
Product Detail:
| Parameters/ Models | AM-EN2211S103-0032 | AM-EN2211S103-0064 | AM-EN2211S103-0128 | AM--EN2211S103-0256 | AM-EN2211S103-0512 | AM-EN2211S103-1024 |
| Diameter | 22 | 22 | 22 | 22 | 22 | 22 |
| PPR / TURN | 32 | 64 | 128 | 256 | 512 | 1024 |
| Max Channels | 3 | 3 | 3 | 3 | 3 | 3 |
| Max Working Freq.(KHz) | 20 | 40 | 100 | 180 | 360 | 512 |
| Direction Signal | no | no | no | no | no | no |
| Drive(Differential Output) | yes | yes | yes | yes | yes | yes |
Product Information :
| Technical Parameter | Suitable for motor size | Pin definition |
| Power Vcc | 5V±5% | Suitable for shaft diameter | 2.0 / 4.0 | 1.NC | 2. Vcc |
| Vcc=5.0V Signal | ISL32179 | Suitable for shaft length | 3.7~4.0 | 3.GND | 4. NC |
| Operating Temperature | -40-125℃ | Suitable for boss diameter | 10.95~11.0 | 5. A- | 6.A+ |
| Inertia(max) | 0.015 g.cm² | Suitable for boss thickness | Maximum 1.0 | 7. B- | 8.B+ |
| Output Current. each channel | 1.5 mA (max) | Code wheel spacing | 0.7~1.0 | 9. Z- | 10. Z+ |

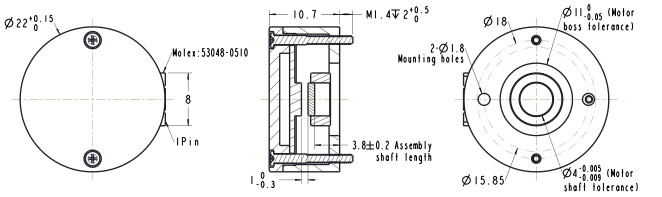

| Weight | 9.0g | Other fixed size | Drawing | |
Product Combiniation Scheme :
Recommended Gearbox:
Planetary gearbox: AM-20GP. AM-24GP. AM-36GP. AM-40GP. AM-45GP
Recommended Motor :
Brushless Motor:AM-CL22** . AM-CL35**
Remarks: Clients can choose gearbox and motor to match with this encoder.
Application:
Application of Assun Encoder in intelligent equipment. Robotic
brake. Z-axis brake. Servo motor static braking. General purpose
motor.etc.
Attention :
1. Non-professional personnel are strictly prohibited to operation.
2. Do not remove and change the electrical wire by yourself to
avoid causing damage to the encoder.
3.When installation, prevent static damage to the encoder.
Service idea :
We can search for qualified products according to the required
specifications (size, torque, revolutions, etc.) of gearbox, DC
motor and reducer proposed by customers. The products searched are
just one example of a rich product lineup, and there are many
products that have not been published. At the same time, we also
undertake special product design and OEM development. For relevant
matters, please contact the business department of our company.
