High quality Regular Planetary Gearbox.D16mm.L 18.5/22.4/
26.3/30.2/34.0mm
Product introduction:

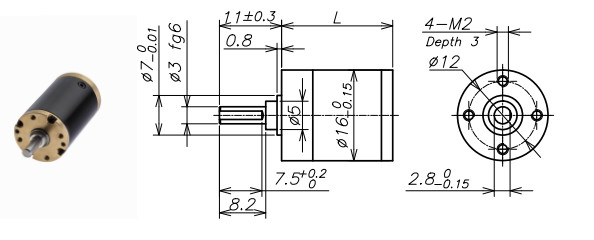

1.Regular Planetary Gearbox diameter 16mm.length 18.5 / 22.4 / 26.3
/ 30.2/34.0mm..
2.Gear type: Straight teeth Average backlash on load: ≤3°
3.Output shaft : stainless steel hardened Radial Play : ≤ 0.04
4. Main gear: Alloy Steel Permissible axial load : ≤10N
5. Ring gear : Steel Permissible force press fits : ≤50N (5mm from
mounting face)
6.Adapter plate: Copper Recommeneded inut speed ≤10000RPM.
7.Bearing AT output :Ball bearing Operating temperature range:
-40~100℃.
8Axial play: 0~0.3 Operating hunidity range : 10-90%RH. Directions
: CW/CCW.
Product Detail:
| Number of stage | 1 | 2 | 3 | 4 | 5 |
| Reduction ratio X :1 | 3.3 3.8 4.4 5.4
| 11 19 12 20 14 24 16 29 18 | 37 62 97 41 64 104 47 72 109 53 76 128 84 158 | 175 370 591 198 410 690 231 455 850 270 522 316 561 | 742 1996 1014 2458 1185 3027 1386 3728 1621 4592 |
| Gearbox length L (mm) | 18.5 | 224 | 26.3 | 30.2 | 34.0 |
| Max.continuous torque(N.m) | 0.3 | 0.5 | 0.6 | 0.7 | 0.7 |
| Max.intermitten torque(N.m) | 0.5 | 0.7 | 0.9 | 1 | 1 |
| Gearbox efficiency | 90% | 81% | 72% | 65% | 59% |
| Moment of inertia range(g.cm²) | 0.06 | 0.05 | 0.05 | 0.05 | 0.05 |
| Gearboxweightapprox (g) | 23 | 28 | 31 | 36 | 40 |
| Gearbox model | AM-16PA-X-01 | AM-16PB-X-01 | AM-16PC-X-01 | AM-16PD-X-01 | AM-16PE-X-01 |
Recommended Motor :
Coreless Motor: AM-CL1642MA
Coreless Motor(w/E): AM-CL1623MAN AM-CL1626MAN AM-CL1633MAN
AM-CL1643MAN
Brushless Motor(w/E): AM-BL1640A/B
Recommended Encoder :
Suitable for Coreles Motor: Encoder S : AM-EN1611S***
Suitable for Brushless Motor : Encoder S : AM-EN1611S*** Encoder T
: AM-EN1612T***
Assun Planetarty gearbox can install the corresponding with Encoder
and DC Graphite Brush/ Brushless Motor
Assun precision plantary gearbox application of positive element in
intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
Service idea :
We can search for qualified products according to the required
specifications (size, torque, revolutions, etc.) of gearbox, DC
motor and reducer proposed by customers. The products searched are
just one example of a rich product lineup, and there are many
products that have not been published. At the same time, we also
undertake special product design and OEM development. For relevant
matters, please contact the business department of our company.
