Brushless pluse Motor.Brushless impluse Motor.Coreless Pluse
Motor.12V 24V
Product Description:
Assun Servo Motors are built with servo controller integrated
inside the Assun brushless motor.With diameter from 20mm to
65mm.Assun servo motors can be connected directly to the industrial
PLC and are ideal for applications that need simple and precise
position control.
Assun Servo Motor are DC brushless motors with integrated position
servo controller. it uses traditional analogue or digital signal
input for position control. As feedback function integrated
inside,no more encoders are needed and thus achieving compact
overall sizes.
Product introduction:
AM-PI2051AN-2142.

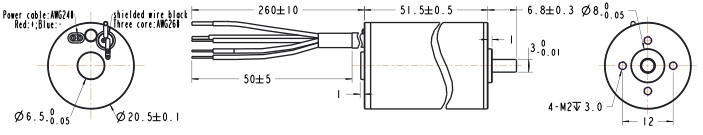

1.Diameter 20mm.Length 51mm.DC Brushless Pluse Motor,
2. Nominal voltage : 24V. Voltage range : 21.5 ~ 26.5 V.
3.No-load holiding current:45 mA. Static holding torque : 10.0
mN.m. Static holding current : 150 mA.
4. Rated torque : 10.0 mN.m. Rated speed : 12000rpm. Pulse number /
circle : 256 Pulse / circle.
5.Overload torque : 20 mN.m. Maximum overload time : 3 s. Moment of
inertia : 1.13 gcm². Weight :78.5 g.
5. DC Brushless Pluse motors can install the corresponding with
planetarty gearbox.
Product Details:
| Motor Model | AM-PI2051AN-2142 | Unit |
| Nominal voltage | 24 | V |
| Voltage range | 21.5 ~ 26.5 | V |
| No-load holiding current | 45 | mA |
| Static holding torque | 10.0 | mN.m |
| Static holding current | 150 | mA |
| Rated torque | 10.0 | mN.m |
| Rated speed | 12000 | rpm |
| Pulse number / circle | 256 | Pulse / circle |
| Overload torque | 20 | mN.m |
| Maximum overload time | 3 | S |
| Moment of inertia | 1.13 | gcm² |
| Weight | 78.5 | g |
Additional Information :
| Note : Excessive shock loads and periodic oscillations can cause
the motor to run unsteadily.Stabilize the system by improving the
load. |
| Motor thermal resistance : 14.6 K /W. | Motor thermal time constant: 680S |
| Axial (dynamic) : 2.5N | Radial (5mm from head face): 16.0N |
| Press-fit force (static) : 50N. | L: Max allowable screw depth info flange : 3.0mm |
| Maximum radial runout ( 5mm from the thread surface): ≤ 0.02mm | Axial play : 0 (＜ 4.0 N ) |
| Maximum winding temperature : 85 ℃ | Ambient temperature range : -30 to 65 ℃. |
Recommended Gearbox:
Planetary gearbox: AM-20GP. AM-24GP.
Appliation:
Assun Motor application of positive element brushless precision
servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
Service idea :
We can search for qualified products according to the required
specifications (size, torque, revolutions, etc.) of gearbox, DC
motor and reducer proposed by customers. The products searched are
just one example of a rich product lineup, and there are many
products that have not been published. At the same time, we also
undertake special product design and OEM development. For relevant
matters, please contact the business department of our company.
