Graphite Brush Coreless DC Motor.Carbon Brushed DC Motor.DC Brush

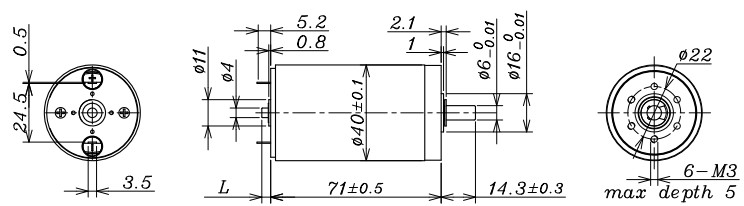

Motor12V24V48V D40mm L71mm
Maximum winding temperature : 125 ℃.
Model:
AM-CL4071GAE-4804
Product Description:
Assun Graphite Brush motor is used on the commutator or slip ring
of the motor. As a sliding contact for deriving and introducing
current, it has
good conductivity, heat conduction and lubrication performance, and
has certain mechanical strength and commutation. It is widely used
in all
kinds of intelligent robots, medical equipment, electronic Mounter
equipment, etc
Product Details:
| Motor Model | AM-CL4071GAE-4804 | Unit |
| Nominal voltage | 48 | V |
| No load speed ±12% | 3500 | rpm |
| No load current Max150% | 36 | mA |
| Max cont.torque | 177.9 | mN.m |
| Rated Speed | 2921 | rpm |
| Rated Current | 1400 | mA |
| Rated Power | 54.4 | W |
| Starting current | 8276 | mA |
| Stall Torque | 1074 | mN.m |
| Maximum power output | 98.4 | W |
| Maximum Efficiency | 87 | % |
| Terminal resistance ±12% | 5.8 | Ω |
| Maximum winding temperature | 125 | ℃ |
| Mechanical time constant | 4.2 | ms |
| Moment of inertia | 122.2 | gcm² |
| Torque constant | 130.4 | mN.m / A |
| Speed constant | 73 | rpm / V |
| Speed / torque gradient | 3.3 | rpm / mN.m |
| Weight | 497 | g |
Recommended Gearbox:
Planetary Gearbox : AM-40GP. AM-45GP.
Recommended Encoder :
Encoder S : AM-EN2211S***
2~3 Channels.
Encoder T : AM-EN2412T***
2~3 Channels.
Assun DC Graphite Brush Motor can install the corresponding with Encoder and Planetarty gearbox.
Assun Motor application of positive element brushless/ brushed
precision servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous
limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
